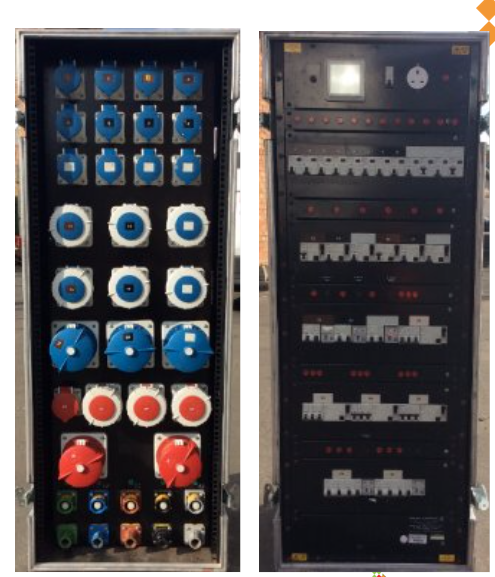

400A > 1x 400A, 2x 125A/3, 3x 63A/3, 1x 32A, 3x 125A, 6x 63A, 12x 32A (Individual MCBs/RCBOs) [DIS400EV]

Description

Input- 400a POWERLOCK IN panel mount.

Output – 1 400a powerlock, 2 x 125a/3, 3 x 63a/3, 1 x 32a/3, 3 x 125a , 6 x 63a

Powerlock chassis mounted inputs, metering wired 400A feeding looped Powerlock
chassis outputs with: 3 x 125A SPN with individual adjustable MCB/RCD
6 x 63A SPN with individual 100ma RCBO
