Description
SYSTEM CAPACITY
o 6144 outputs/parameters,
o 16,000 Channels
o 10,000 Cues
o 999 Cue Lists
o 999 Submasters
o 4 x 1000 Palettes (Intensity, Focus, Color, Beam)
o 1000 Presets (all palette)
o 1000 Groups
o 1000 Effects (relative, absolute or step)
o 1000 Macros
o Supports two external DVI monitors or one Display Port monitor at 1280×1024 minimum resolution or multi-touch screen control
o Solid-state hard drive
o USB ports for flash drives, pointing devices, keyboards
INTERFACES
o 2 DMX-512 Ports (RDM ready)
o Ethernet (ETCNet2, Net3,Artnet and Avab UDP output protocols)
o Contact Closure triggers via D-Sub connector
o Two DVI connectors support two external DVI displays(1280×1024) with optional touch- or multi-touch screen control
o One Display Port connector
o Seven multipurpose USB ports
o Phone Remote
o Net 3 Radio Focus Remote
o MIDI In/Out (Timecode, Show Control)
o Additional MIDI Timecode, Show Control through Gateway
o SMPTE Timecode through Gateway
o Additional contact closure (12 analog inputs, 12 SPDT contact outputs, RS-232) through Gateway
o One eSATA port
PHYSICAL
Ion Dimensions*
MODEL HEIGHT WIDTH DEPTH
inches mm inches mm inches mm

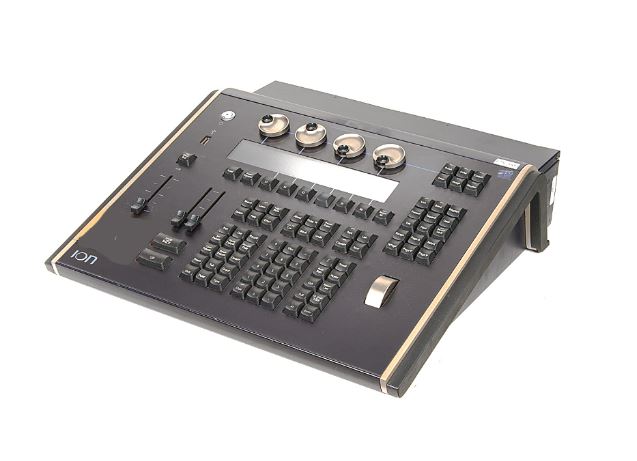

Ion Console 5.2 132 17.9 455 18.2 462
Ion Weights*
MODEL WEIGHT SHIPPING WEIGHT
lbs kgs lbs Kgs
Ion Console 20.35 9.23 23.38 10.61
*Weights and dimensions typical
