Description

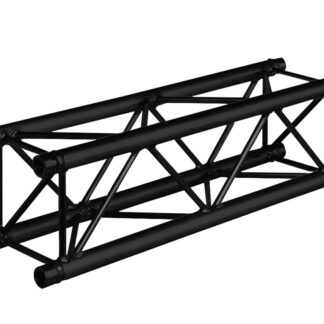

They are made for X30V truss only,
which can be placed in one of three positions, as shown n the attached pictures.
Under test they have proved to be suitable for a Maximum height of 3m and will take a load of 50kg straight down, 25kg directly on the side of the truss reducing down to 5kg at 500mm out (standard Doughty boom arm).

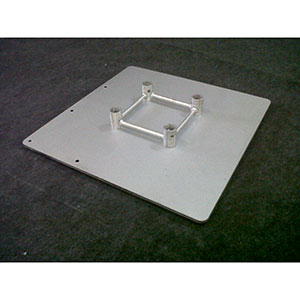

In themselves they are 765mm x 765mm x 30mm and weigh in at 60kg each.
baseplate plus wood = 40mm
x30v attachement = 75mm
total = 115mm high
